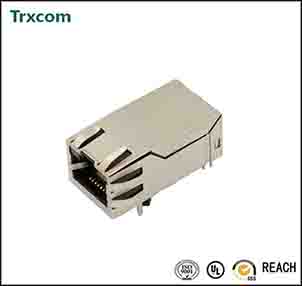

10G Low Profile RJ45 TRJK9461A97NL

Release Time:2022-07-02 21:35:33 Traffic:1009
  • 10G Low Profile RJ45 TRJK9461A97NL

Trxcom part number:                               TRJK9461A97NL

Speed:                                                      10 Gigabit Base-T

Type:                                                         Low Profile

Application:                                              Lan Ethernet

Number of ports:                                     1x1 single port

Package:                                                   THT

Temperature:                                            -40 to +85℃

Sample:                                                     Free sample available for your testing



Notes:

1. Designed to support application, such as SOHO (ADSL modems), LAN-on-Motherboard(LOM),

hub and Switches.

2. Meets IEEE 802.3 specification

3. Connector Materials:

     Housing: Thermoplastic UL94V-0

     Contact/ Shield: Copper alloy

     Shield plating: Nickel

     Contact plating: Gold 6 micro-inches min. In contact area

4. Wave peak temperature: 260 ℃, 5 Sec

5. UL Certifictaion: File Number E321120


Electrical Specification @25℃

1. Turn Ratio: 1CT : 1CT ±2%

2. Inductance(OCL): 120uH Min @100KHz, 100mV  8mA  DC Bias

3. Insertion Loss:

1~250MHz: -1.2      25050MHz: -3

4. Return Loss ( dB Min):

1~40MHz: -18         40~100MHz: -14

    100~250MHz: -11   250~500MHz:-8

5. Crosstalk:

1-100MHz: -30dB Min

100-500MHz: -20dB Min

6. Common Mode Rejection Ratio:

1-100MHz: -28dB Min

100-250MHz: 22dB Min

250-500MHz: -20dB Min

7. Hipot: 1500Vrms

9. Operating Temperature: -40 to +85℃


Datasheet Specification:

Please email trxcom@trxcom.com for spec
