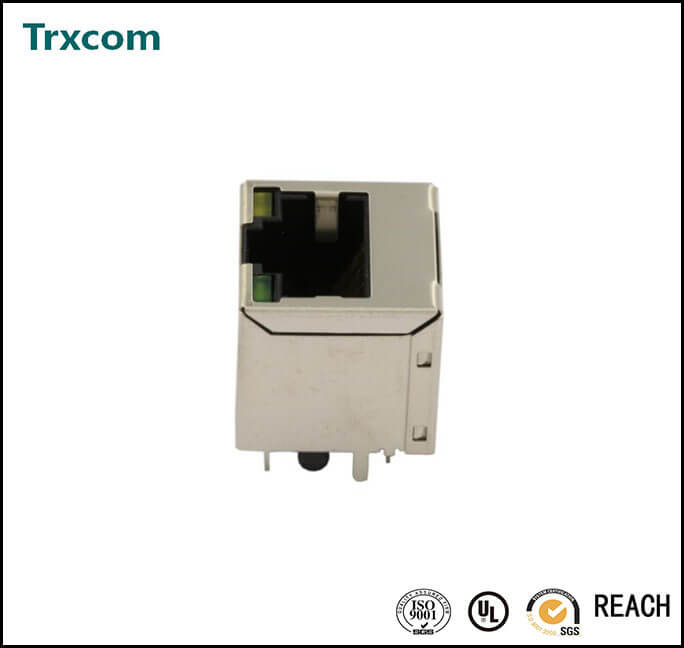

10/100M Vertical Type RJ45 Connector TRJD0011BBNL

Release Time:2020-05-16 12:09:08 Traffic:2717
  • 10/100M Vertical Type RJ45 Connector TRJD0011BBNL

10/100M Vertical Type RJ45 Connector With Led, 180 Degree, RoHs compliant

Trxcom part number:                 TRJD0011BBNL

Speed:                                        10/100BASE-T
Number of Ports:                       1X1 single port
Application:                                LAN Ethernet (without PoE)
Mechanical:                                without EMI finger

LED:                                            with LED ( Green and Yellow )

Pin Type:                                    THT Soldering
Operating Temperature:            0℃ TO 70℃

Sample:                                      Free sample available for testing


NOTES:

1. Designed to support application such as SOHO (ADSL modems),

    LAN-on-Motherboard(LOM),hub and Switches.

2. Meets IEEE 802.3 specification

3. Connector Materials:

    Housing: Thermoplastic UL94-0

    Contact/ Shield: copper alloy

    Shield plating: Nickel

    Contact plating: Gold 6 micro-inches min In contact area

4. Wave solder tip temperature: 265 Max, 5 Sec Max

5. UL Cerfitication: File Number E321120



Electrical Specification @25

1. Turn Ratio(±3%)TX=1CT:1CT   RX=1CT:1CT

2. Inductance OCL: 350uH MIN @100KHz, 0.1V  8mA DC Bias

3. DCR: 1.2Ω Max

4. Insertion Loss:

    -1.0dB Max @ 1-100Mhz

5. Return Loss:

    -18dB MIN @1-30MHz

    -15dB MIN @ 30-60MHz

    -12dB MIN @ 60-100MHz

6. Crosstalk:

    -40dB MIN @ 30MHz

    -35dB MIN @ 60MHz

    -30dB MIN @ 100MHz

7. Common Mode Rejection:

   -30dB MIN @ 1-100MHz

8. Hipot Test: 1500Vrms

9. Operating Temperature: 0to 70



Packing Information:

Packaging unit: 50pcs/tray

Packaging material: PVC

Outer carton unit: 1000pcs/ 20 tray/ box

Net weight: 7kg

Gross weight: 9kg



Datasheet Specification:

Email us ( trxcom@trxcom.com ) for spec
