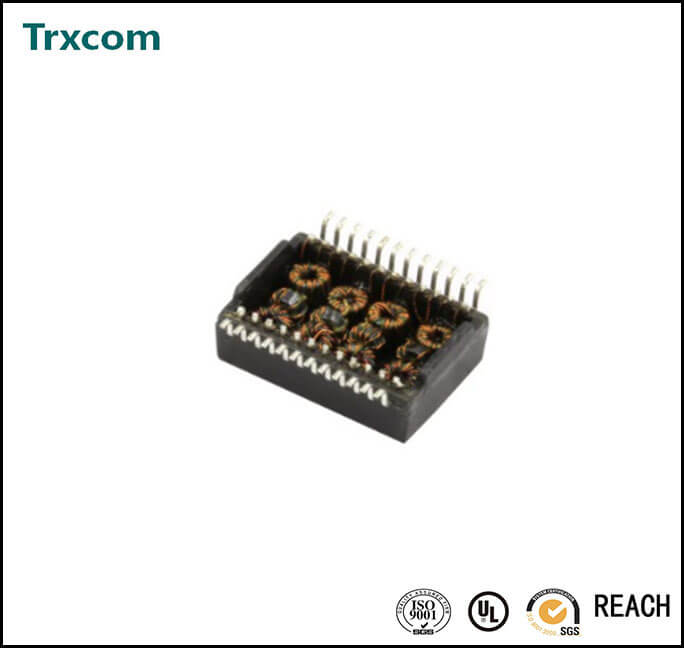

1000M Single 24Pin Lan Transceiver TRC5007NL
Trxcom 1000Base-T 24PIN Single Port Lan Transformer, RoHs Compliant
Trxcom part number: TRC5007NL
Other cross part number: S558-5999-P3-F, H5007NL
Speed: 1000Base-TX
Number of ports: Single
Application: Lan Ethernet
Package: SMT
PIN Number: 24Pins
Temperature: 0 to +70℃
Construction: Open Frame
Turns Ratio RX: 1CT: 1CT
Turns Ratio TX: 1CT: 1CT
Certificates: UL, Reach, RoHs, IOS9001:2015
UL File Number: E321120
Sample: Free samples supported
Notes:
1. Designed to support application. such as SOHO( ADSL modems), LAN-on-motherboard(LOM), hub and Switches.
2. Meets IEEE 802.3 specification.
3. Maximum reflow temperature is 250℃， 5 Sec.
Electrical Specification @25℃
1. Turn Ratio (±2%) : TX=1CT: 1 RX= 1CT: 1
2. Inductance OCL: 350uH MIN @ 100KHz 0.1V 8mA DC Bias
3. Insertion Loss: -1.0dB Max @ 1-100MHz
4. Return Loss:
-18dB MIN @ 1-30MHz
-18dB MIN @ 40MHz
-16dB MIN @ 50MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 100MHz
5. Cross Talk:
-45dB MIN @ 30MHz
-40dB MIN @ 60MHz
-35dB MIN @ 100MHz
6. Common Mode Rejection:
-43dB MIN @ 30MHz
-37dB MIN @ 60MHz
-33dB MIN @ 100MHz
7. Hipot Test: 1500Vrms MIN
8. Operating Temperature Range: 0℃ to 70℃
Specification Datasheet:
please email trxcom@trxcom.com for spec
