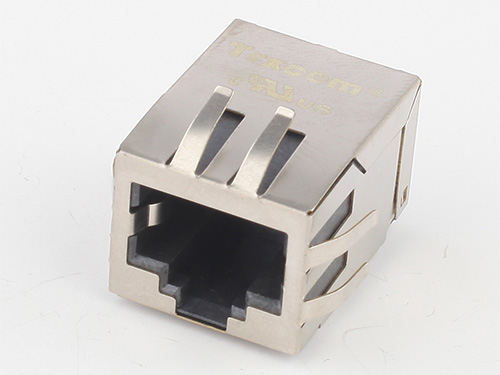

SMT 1x1 Tab Down 10/100M RJ45 TRJ19111DNL

Release Time:2020-05-13 18:04:36 Traffic:1405
  • SMT 1x1 Tab Down 10/100M RJ45 TRJ19111DNL

Surface Mount 1x1 Tab Down 10/100M 21.30mm RJ45 Ethernet Connector, RoHs compliant

1. Designed to support application such as SOHO (ADSL modems), LAN-on-Motherboard(LOM),

    hub and Switches.

2. Meets IEEE 802.3 specification

3. Connector Materials:

    Housing: Thermoplastic UL94-0

    Contact/ Shield: Copper alloy

    Shield plating: Nickel

    Contact plating: Gold 6 micro-inches min In contact area

4. Wave solder tip temperature: 265 Max

    Wave solder tip temperature time: 5 Sec Max

5. UL Cerfitication: File Number E321120



Electrical Specification @25

1. Turn Ratio(±2%)TX=1CT:1CT   RX=1CT:1CT

2. OCL: 350uH Min @100KHz,  100mV, 8m ADC

3. Insertion Loss:  1-65MHz: -1.0dB Max

4. Return Loss( dB Min):

   1-10MHz: -18

   30MHz: -14

   60-100MHz: -10

5. Crosstalk( dB Min):

    1-60MHz: -35 60-100MHz: -30

6. Common Mode Rejection Ratio:

    1-130MHz: -20dB Min

7. Hipot Test: 1500Vrms

8. Operating Temperature: 0to 70



Packing Information:

Packaging unit: 120pcs/reel

Packaging material: PVC

Outer carton unit: 720pcs/ 6 reel/ box

Net weight: 8kg

Gross weight: 10kg
