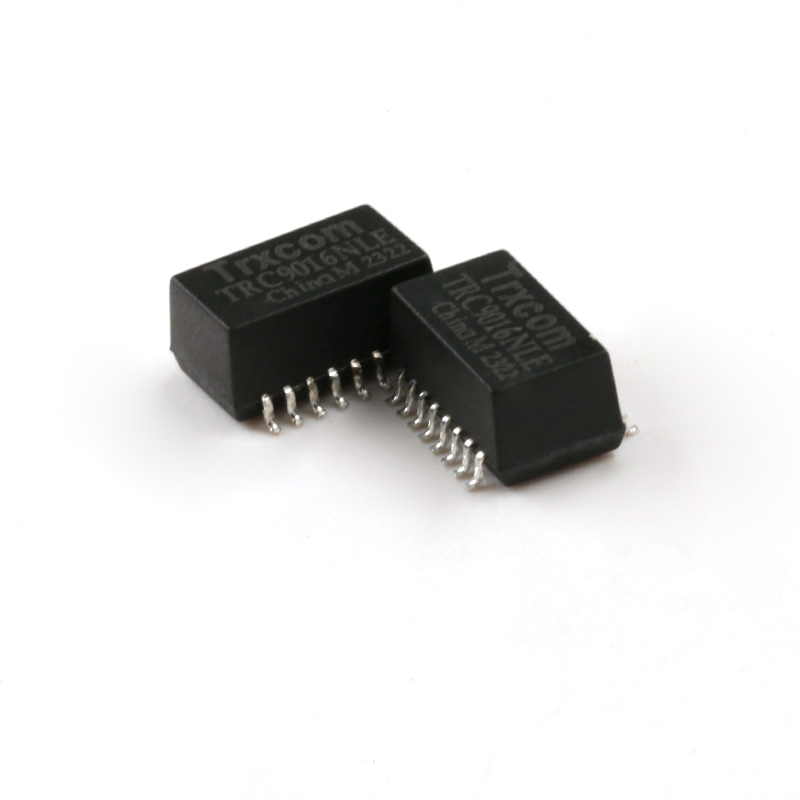

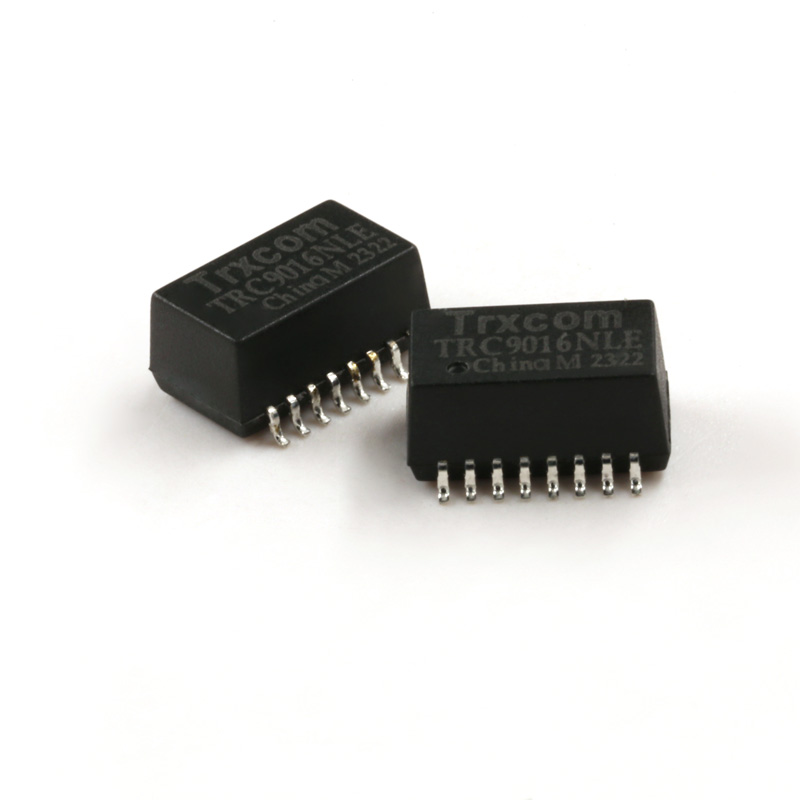

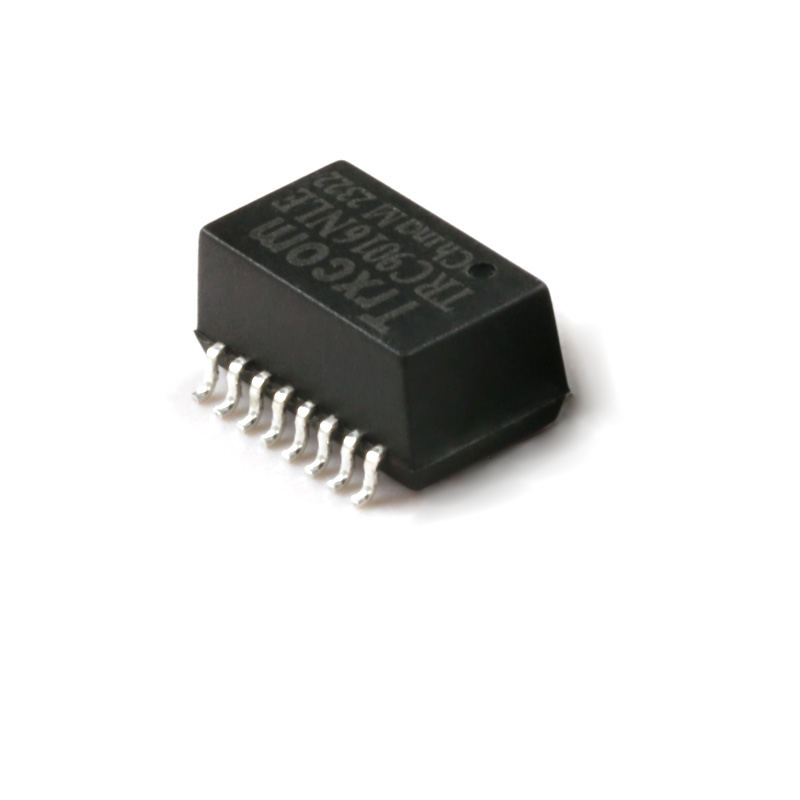

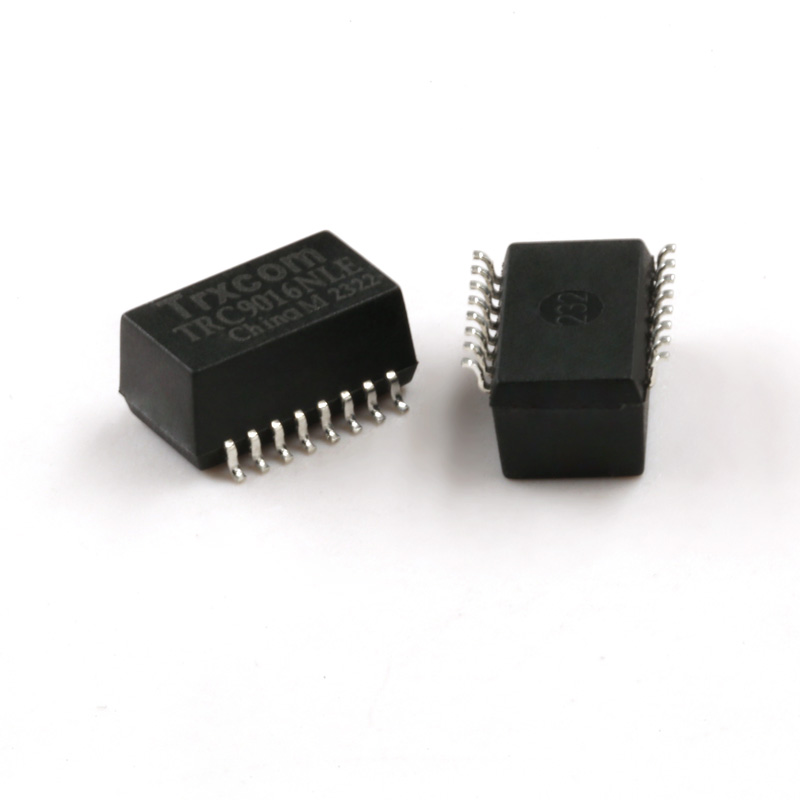

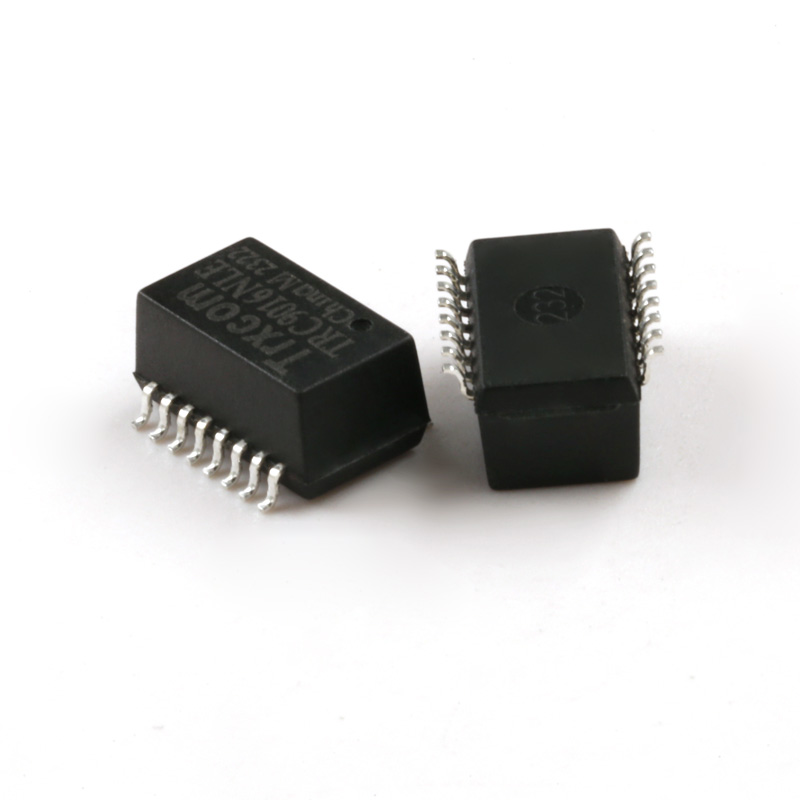

TRC9016NLE 10/100Base-T Single Prot LAN Transformer Module 16PIN
share
Parameter
Brand ： Trxcom
Model ： TRC9016NLE
Data Rate ： 10/100Base-T
PoE ： No
Mount ： SMT
Temperature ： 0℃ to +70℃
PIN ： 16PIN
DetailReview(0)
Trxcom TRC9016NLE 10/100Base-T LAN Transformer Module (Single Port,SMT,16Pin)
The TRC9016NLE speed 10/100 Base-T, It is compliant to IEEE 802.3 , UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to Industrial PC, Embedded Main Board, Automation, Video Recorder.
| Trxcom Part Number | TRC9016NLE | Transformer Type | Lan Transformer |
| Part Status | Active | Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver |
| Construction | CLOSED FRAME | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | Single Port | Speed | 10/100 Base-T |
| Package | Tape & Reel | Cores per Port | 2 |
| AutomDX | Yes | Comment | SAME AS NL VERSION |
| PIN number | 16 | Mounting Type | Surface Mount |
| Package Height (Inches/mm) | 0.244/6.20 | Package Length (Inches/mm) | 0.500/12.70 |
| Package Width (Inches/mm) | 0.366/9.30 | Temperature | 0℃ TO +70℃ |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C,S |
Consumer Electronics
Security System
Military Industry
