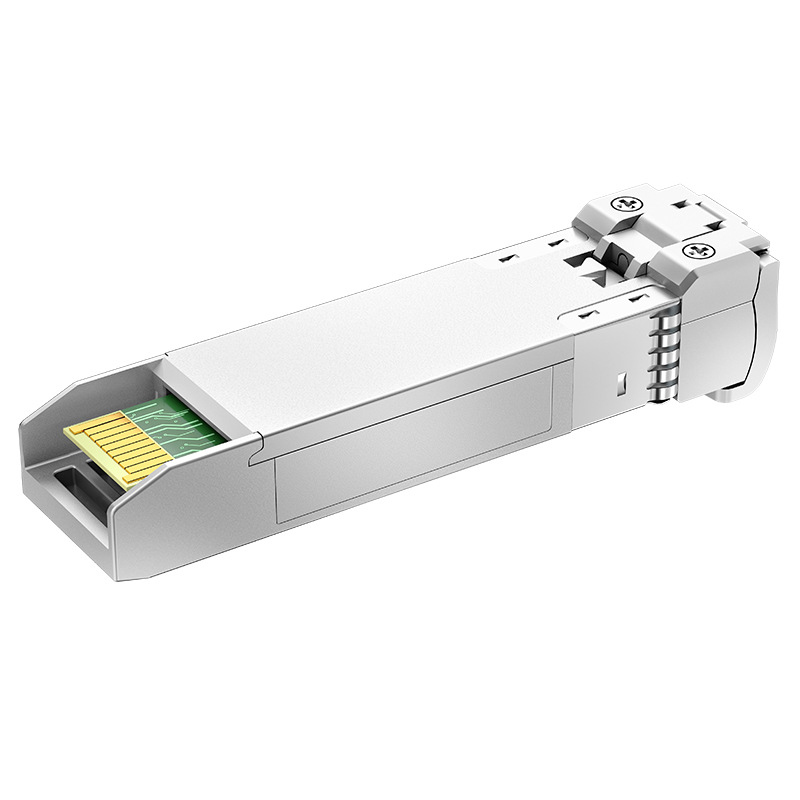

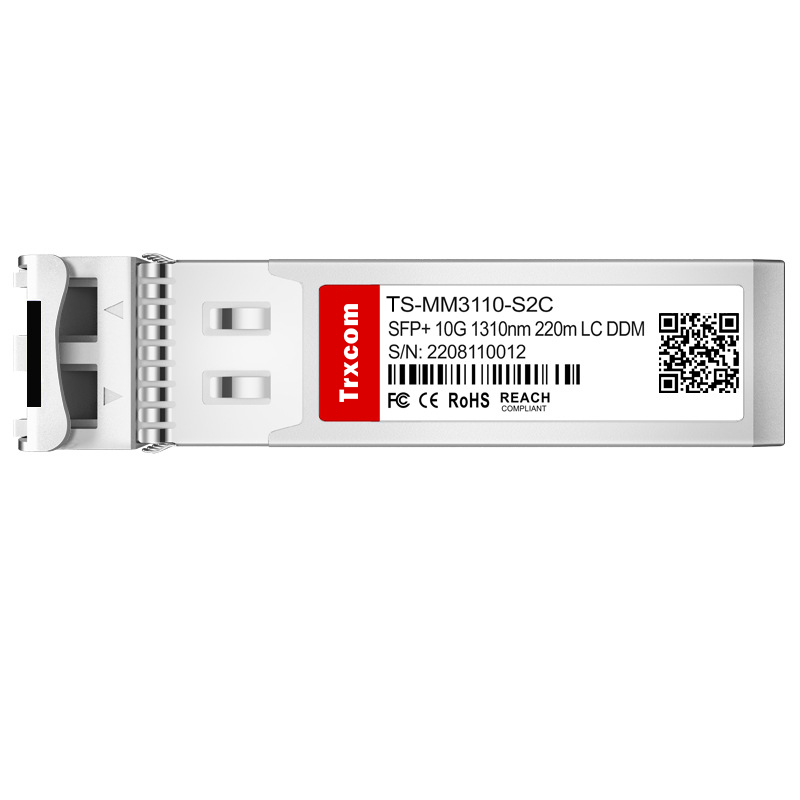

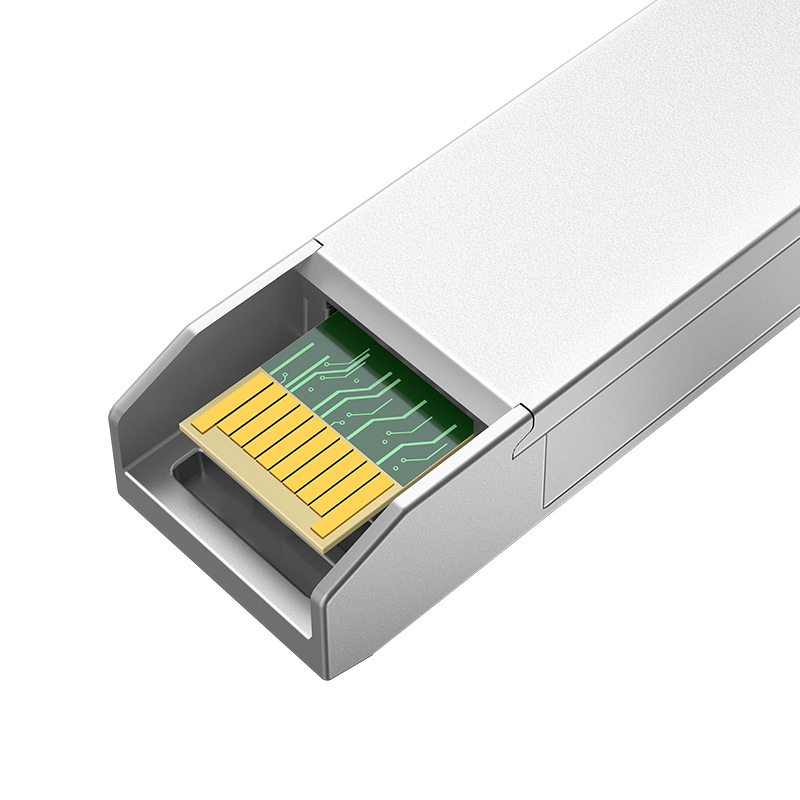

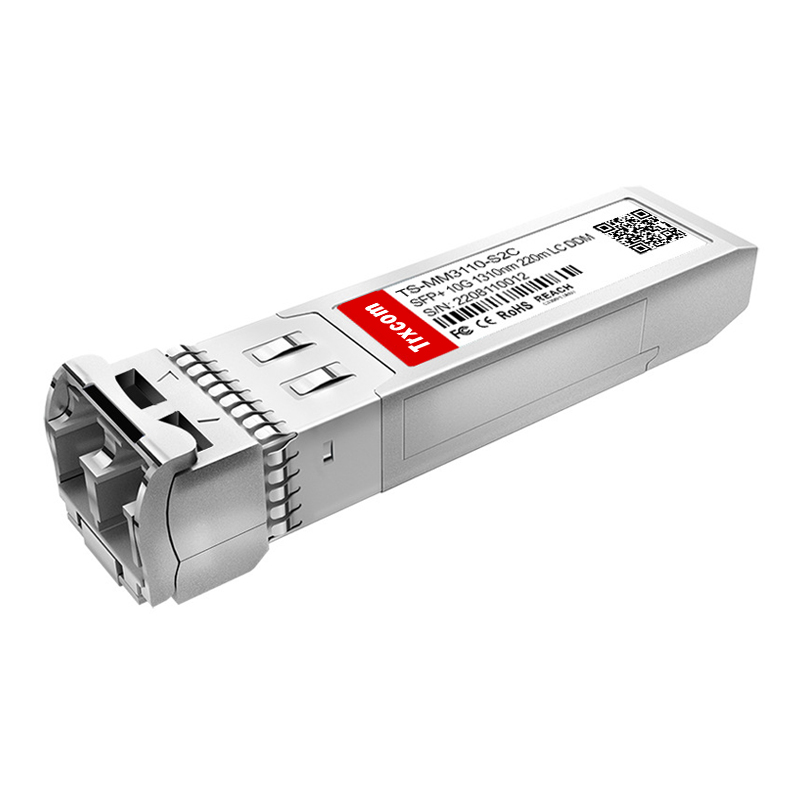

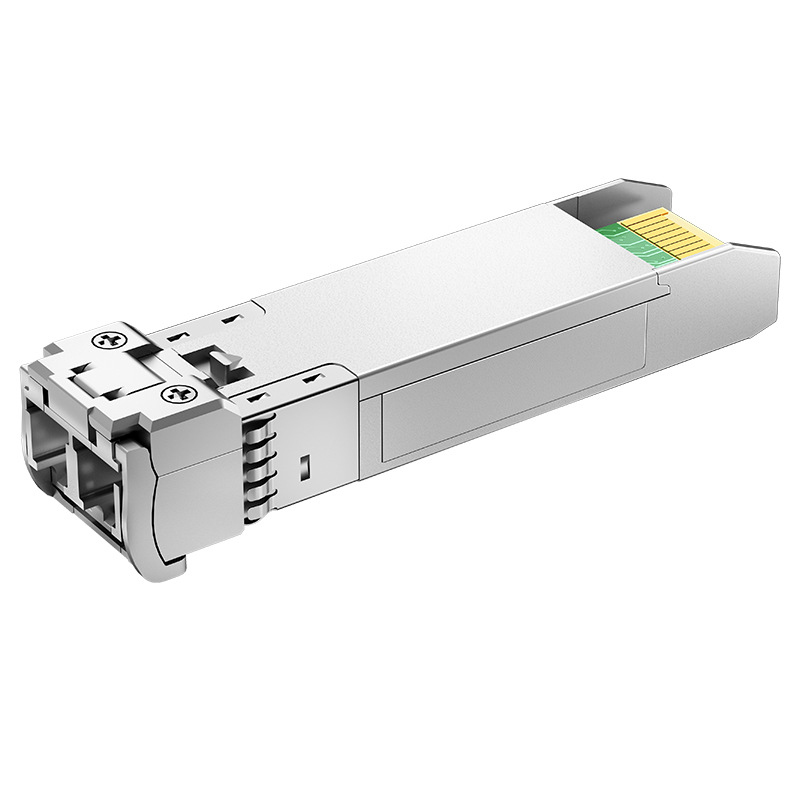

TS-MM3110-S2C SFP+ 10GBASE-LRM 1310nm 220m Duplex LC/UPC MMF/SMF Optical Transceiver Module DOM
share
Parameter
P/N ： TS-MM3110-S2C
Form Factor ： SFP+
Type ： Multi Mode
Data Rate ： 10G
Model ： LR
Connector ： Duplex LC
Distance ： ≤220m
Wavelength ： 1310nm
DetailReview(0)
Trxcom TS-MM3110-S2C 10GBASE-LRM SFP+ Optical Transceiver Module (MMF/SMF, 1310nm, 220m/300m, LC, DOM)
The TS-MM3110-S2C SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 220m transmission distance with MMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
| Trxcom Part Number | TS-MM3110-S2C | Vendor Name | Trxcom |
| Form Factor | SFP+ | Max Data Rate | 10.3Gbps |
| Wavelength | 1310nm | Max Cable Distance | 200m |
| Connector | Duplex LC | Optical Components | FP 1310nm |
| Media | MMF | DOM Support | Yes |
| TX Power | -6 to -0.5dBm | RX Power | -15 to -1dBm |
| Receiver Sensitivity | -10dBm | Receiver Overload | 0.5dBm |
| Operating case temperature | 0 to 70°C | Protocols | SFP+ MSA Compliant, CPRI, eCPRI |
