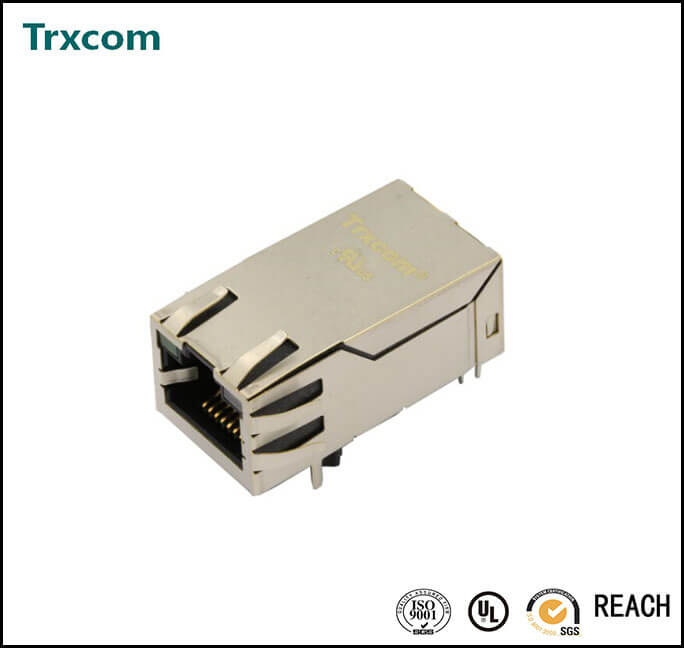

10G Tab Up RJ45 Connector with magnetic
Trxcom 10G Base-T Single Port Tab Up RJ45 Connector with magnetic, RoHs compliant
Trxcom part number: TRJK9036AHNL
Speed: 1000BASE-T
Number of Ports: 1X1 Single port
Application - LAN: Ethernet (without PoE)
Latch: Tab down
Mechanical: with EMI finger
LED: without LED
Pin Type: THT Solder
Operating Temperature: 0℃ TO 70℃
Sample: Free sample available for testing
NOTES:
1. Meets IEEE 802.3 specification
2. Connector Materials:
Housing:
Thermoplastic UL94-0
Contact/ Shield: Copper alloy
Shield plating: Nickel
Contact
plating: Gold 6 micro-inches min In contact area
3. Wave solder tip temperature:
265℃ Max, 5 Sec Max
4. UL Cerfitication: File Number
E321120
Electrical Specification @25℃
1. Turn Ratio(±3%)： 1CT:1CT
2. Inductance OCL: 180uH MIN @100KHz 0.1V
3. Insertion Loss:
100khZ: -3.0dB Max
1-100KHz: -1.0dB Max
100-500KHz: -3.0dB Max
4. Return Loss( Db Min):
1-100M: -22
100-500MHz: -22dB + 18.27*Log(f/100)
5. Crosstalk( dB Min):
1-100MHz: -28
100-500MHz: -19
6. Common Mode Rejection:
1-250MHz: -30
250-500MHz: -22
7. Hipot Test: 1500Vrms MIN
8. Operating Temperature: 0℃ to 70℃
Packing Information:
Packaging unit: 60pcs/tray
Packaging material: PVC
Outer carton unit: 840pcs/ 14 tray/ box
Net weight: 7kg
Gross weight: 9kg
Datasheet Speficication:
